Channel Stored Media - display list of broken recordings

Keywords:  Display missing chunks UI

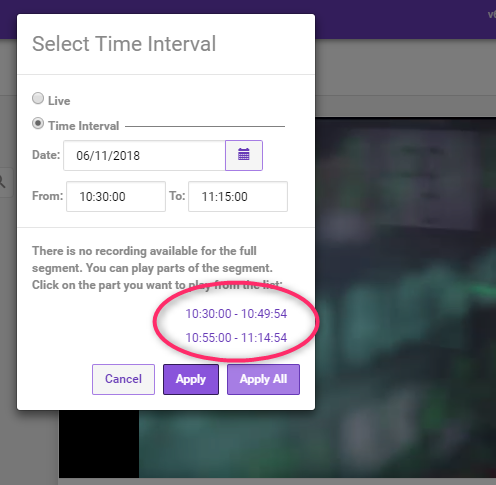

When recordings are broken, Actus can display the list of broken stored content.

To configure a channel to display that list -- in actusssetings.xml , for that channel add the following:

1. <setup displayListOfParts="true"></setup>


For example:

      <add name="Channel01" directory="\\cancun\Media\Record" chunkLength="300" recordAlways="true">

              <captureDevice videoCapture="Decklink Video Capture" audioCapture="Decklink Audio Capture" />

              <captureOverlay overlay="FOOTBALL-1 HD ^dd^/^MM^/^yyyy^ ^hh^:^mm^:^ss^" />

             <captureQuality frameSize="960x540" videoBitRate="1024" audioSampleRate="48000" />

             <recorder additionalArguments="MAudioPID='3eng'" />

     <frames enabled="false" directory="d:\Media\Frames" retention="7d" />

             <cleanup interval="360" retention="15d" />

             <setup displayListOfParts="true"></setup>

       </add>

And restart that channel

          actstartup -r
